TW810X DC Input Two-Wire Transmitter
With Optional Isolation

Wici Logo
Home Button Wilkerson Instrument Co.    800-234-1343 Wilkerson Instrument Co Blog PageWilkerson Instrument Co LinkedIn PageShopping Cart

TW810X

TW810X
DC Input
Two-Wire Transmitter
With Optional Isolation

$270.00

The following information must be entered to complete your order:
See "Specifications" below for Input and Output range limits.

Input:
Zero Scale
Full Scale
Units
  Isolation
Output

Quantity:



Don't Forget Your Accessories
DMP8500 DIN-Rail Mounting Plate $20.00
Quantity:
Specifications
HKB-HFC Explosion Proof Housing (Killark) $200.00
Quantity:
Specifications
CLP8500 Mounting Clip (Killark) $15.00
Quantity:
Specifications
DR1 DIN-Rail, 35mm Symmetrical, 39 inches (1 meter) $20.00
Quantity:
Specifications

  • Features
  • Description
  • Specifications
  • Dimensions
  • Connections
  • Provides DC Current Output Proportional to DC Input
  • Fully Isolated Input / Output Available (TW8101)
  • 2 mV or 10 microamps Minimum Input Span
  • Unlimited Choice of Input Ranges (Within Specified Range Limits)
  • Low-Drift Chopper-Stabilized Input
  • NEMA-4X Splashproof and Corrosion Resistant
  • 5 Year Warranty

The TW810X provides a DC output current proportional to a DC input signal.

Optional isolation is also available in the transmitter. The transmitter is protected by a gasketed, NEMA-4X glass-filled polyester housing and operates from - 40°C to +85°C. Optional conformal coating of the electronic components makes the TW810X extremely reliable and resistant to the corrosion, moisture and fungus associated with many industrial environments.

The chopper-stabilized input amplifier provides accurate, low-drift operation. All Wilkerson Products are designed with RFI filters and lightning protection to reduce susceptibility to electrical noise and damage by lightning.

The output ZERO and SPAN controls are accessible through the top of the housing.

Terminations are made to screw terminal connectors on the top of the case.

TYPICAL APPLICATIONS
Remote data acquisition. Voltage to current conversion and isolation. Elimination of ground loops and common mode signals.

INPUT RANGE
Voltage
select any range from ±250 V max (min span 2 mV)

Current
±5 A max** (min span 10 μA, internal shunt)

INPUT IMPENDANCE
Voltage
1 megohm

Current

Input Value Input Shunt Value
1 mA
10 mA
20 mA
4/20 mA
100 mA
1 A
5 A
100 Ohm
10 Ohm
5 Ohm
61.9 Ohm
1 Ohm
0.1 Ohm
0.1 Ohm

OUTPUT RANGE
4/20 mA
10/50 mA (Optional)

OUTPUT RIPPLE
(Peak-to-Peak) < 0.1% of span

ISOLATION (Optional)
Breakdown Voltage > 600 VAC rms
Resistance > 500 megohms

MAX LOAD RESISTANCE
= [(Vsupply - 12)/I out mA] kilohms

RESPONSE TIME
10 ms typical

ACCURACY
±0.05% of span

LINEARITY
±0.01% of span

COMMON MODE REJECTION
120 dB, DC to 60

OPERATINGTEMPERATURE
-40°F to 185°F / -40°C to 85°C

TEMPERATURE STABILITY
±0.01% of span / °C max

POWER REQUIRED
12 to 48 VDC, polarity protected

SUPPLY VOLTAGE EFFECT
0.01% of span max

** For input values greater than 1A rms select appropriate external shunt resistor and use with  0 - 500 mV input.

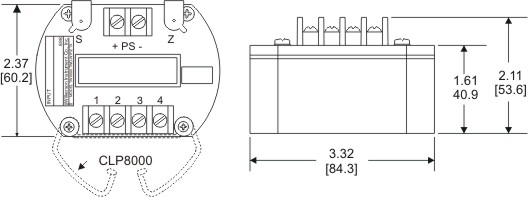

TW8000 Series Dimension Drawing

PIN PS +
PIN PS -
PIN 1
PIN 2
PIN 3
PIN 4
Power Supply +
Power Supply -
Input +
No Connection
Input -
Shield
Specifications    Manual
