TM Series

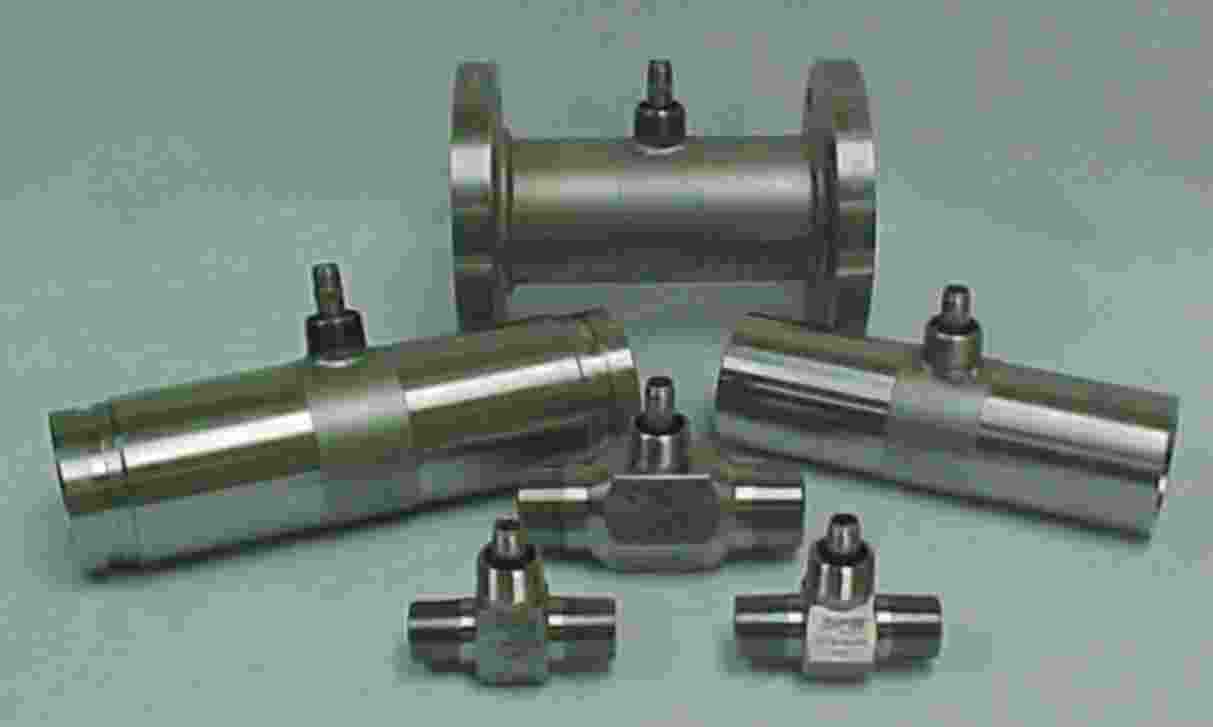

Turbine Flow Meters
** Call for Pricing For Flanged Turbine Flow Meters,
and Victualic Couplings and Nipples |
Specifications I/0 Manual |
|
| |
Pipe
Size |
End Connection
Size |
Flow Ranges |
Maximum Pressure
PSI |
|
|
|
GPM |
BPD |
M3PD |
LPM |
|
TM0038 |
3/8" |
1"x1" Male NPT |
.3
-
3 |
10
-
100 |
1.6
-
16 |
1.14 -
11.36 |
5000 |
$390.00 |
|
| TM0038X1/2 |
3/8" |
1/2"x1/2" Male NPT |
.3
-
3 |
10
-
100 |
1.6
-
16 |
1.14 -
11.36 |
5000 |
$410.00 |
|
| TM0050 |
1/2" |
1"x1" Male NPT |
.75
-
7.5 |
25
-
250 |
4
-
40 |
2.84 -
28.39 |
5000 |
$380.00 |
|
| TM0050X1/2 |
1/2" |
1/2"x1/2" Male NPT |
.75
-
7.5 |
25
-
250 |
4
-
40 |
2.84 -
28.39 |
5000 |
$400.00 |
|
| TM0075 |
3/4" |
1"x1" Male NPT |
2
-
15 |
68
-
514 |
11
-
80 |
7.57 -
56.78 |
5000 |
$380.00 |
|
| TM0075X1/2 |
3/4" |
1/2"x1/2" Male NPT |
2
-
15 |
68
-
514 |
11
-
80 |
7.57 -
56.78 |
5000 |
$400.00 |
|
| TM0078 |
7/8" |
1"x1" Male NPT |
3
-
30 |
102 -
1,028 |
16
-
160 |
11.36 -
113.60 |
5000 |
$380.00 |
|
| TM0078-VIC |
7/8" |
1"x1" Victualic |
3
-
30 |
102 -
1,028 |
16
-
160 |
11.36 -
113.60 |
5000 |
$380.00 |
|
| TM0100 |
1" |
1"x1" Male NPT |
5
-
50 |
170 -
1,714 |
27
-
270 |
18.93 -
189.30 |
5000 |
$308.00 |
|
| TM0100-VIC |
1" |
1"x1"Victualic |
5
-
50 |
170 -
1,714 |
27
-
270 |
18.93 -
189.30 |
5000 |
$308.00 |
|
| TM0150 |
11/2" |
11/2"x11/2" Male NPT |
15
-
180 |
514 -
6,000 |
80
-
980 |
56.8 -
681.35 |
5000 |
$418.00 |
|
| TM0150-VIC |
11/2" |
11/2"x11/2" Victualic |
15
-
180 |
514 -
6,000 |
80
-
980 |
56.8 - 681.35 |
5000 |
$418.00 |
|
TM0200L |
2" |
2"x2" Low Flow Male NPT |
15
-
180 |
514 -
6,000 |
80 -
980 |
56.8 -
681.35 |
5000 |
$540.00 |
|
TM0200L-VIC |
2" |
2"x2" Low Flow Victualic |
15
-
180 |
514 -
6,000 |
80 -
980 |
56.8 -
681.35 |
5000 |
$540.00 |
|
| TM0200 |
2" |
2"x2" Female NPT |
40
-
400 |
1,300 -
13,000 |
218 -
2,180 |
151.41 -
1,514.17 |
5000 |
$676.00 |
|
| TM0200-VIC |
2" |
2"x2" Victualic |
40
-
400 |
1,300 -
13,000 |
218 -
2,180 |
151.41 -
1,514.17 |
5000 |
$676.00 |
|
|
TM0300 |
3" |
3" Grooved End
( Victualic) |
60 -
600 |
2,100 -
21,000 |
320 -
3,200 |
227
2,270 |
800 |
$1,235.00 |
|
|
TM0400 |
4" |
4" Grooved End
( Victualic) |
120 -
1200 |
4,100 -
41,000 |
654 -
6,541 |
454 -
4,542 |
800 |
$1,950.00 |
|
|
TM0600 |
6" |
6" Grooved End
( Victualic) |
250 -
2500 |
6,800 -
85,700 |
1,090 -
13,627 |
757 -
9,463 |
800 |
$2,930.00 |
|
|
TM0800 |
8" |
8" Grooved End
( Victualic) |
350 -
3500 |
12,000 -
120,000 |
1,907 -
19,080 |
1,324 -
13,248 |
800 |
$4,110.00 |
|
|
